ALPHA
THE MULTIFUNCTIONAL HIGH-END HUMIDIFICATION SYSTEM

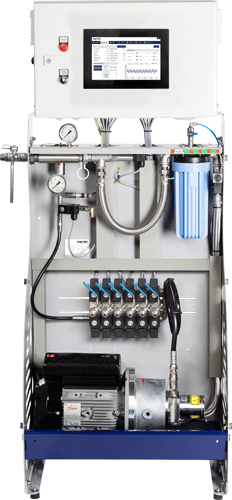

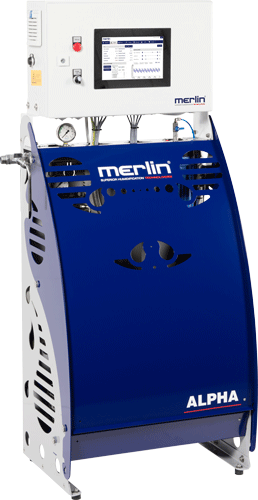

The ALPHA humidification system is the high-end system from Merlin for direct room humidification. With a water lubricated high pressure pump and only the highest quality materials used, the ALPHA requires little to no maintenance and assures you a reliable operation.
Then the water is pumped through a stainless steel hydraulic pump at a pressure of 70 bar to the humidification units where it is finally atomized with the MICRO DROP high-performance nozzles.
The flexible PLC multi-zone control with touchscreen in combination with high-quality humidity sensors ensures precise and constant ambient humidity.

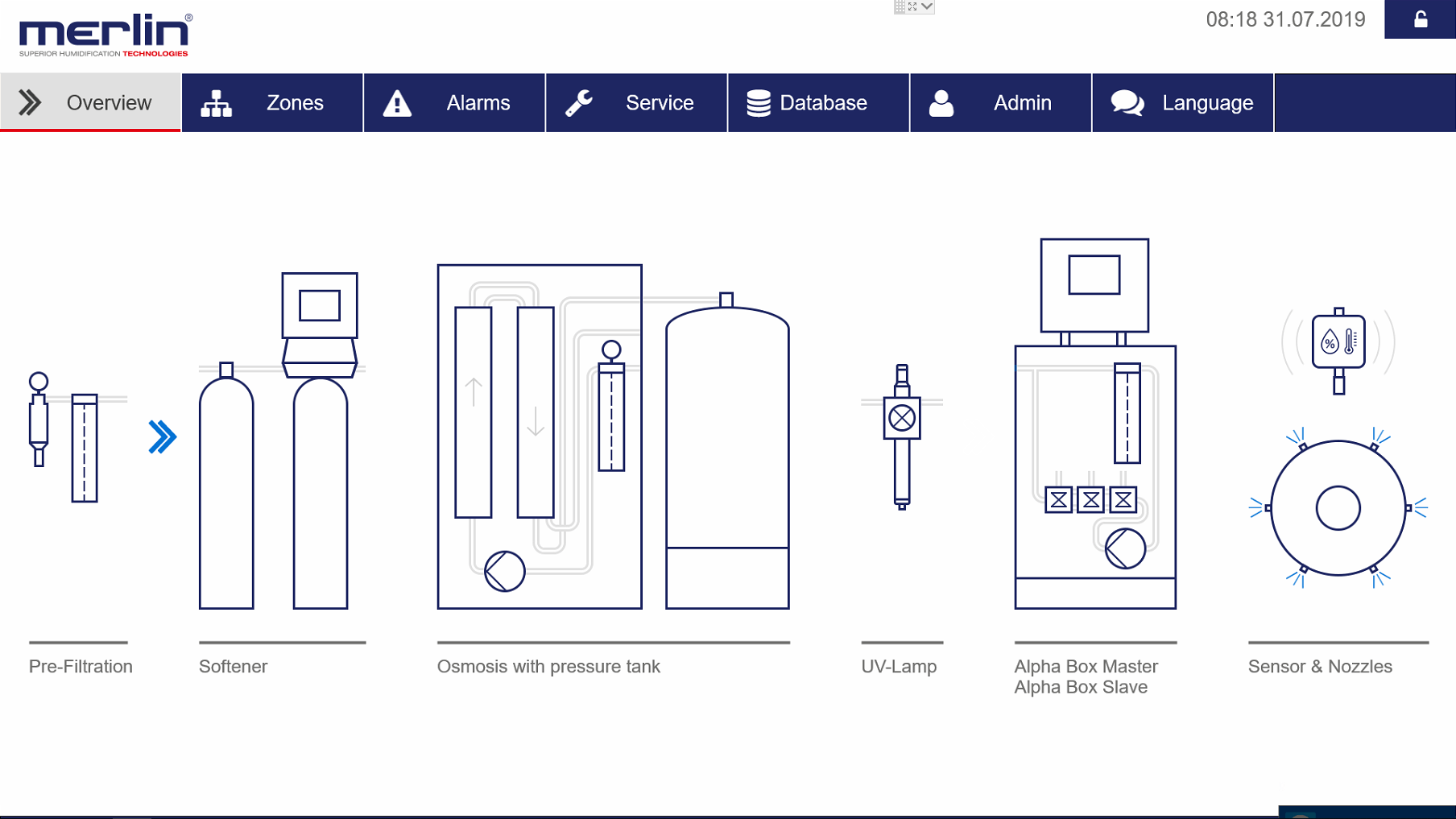

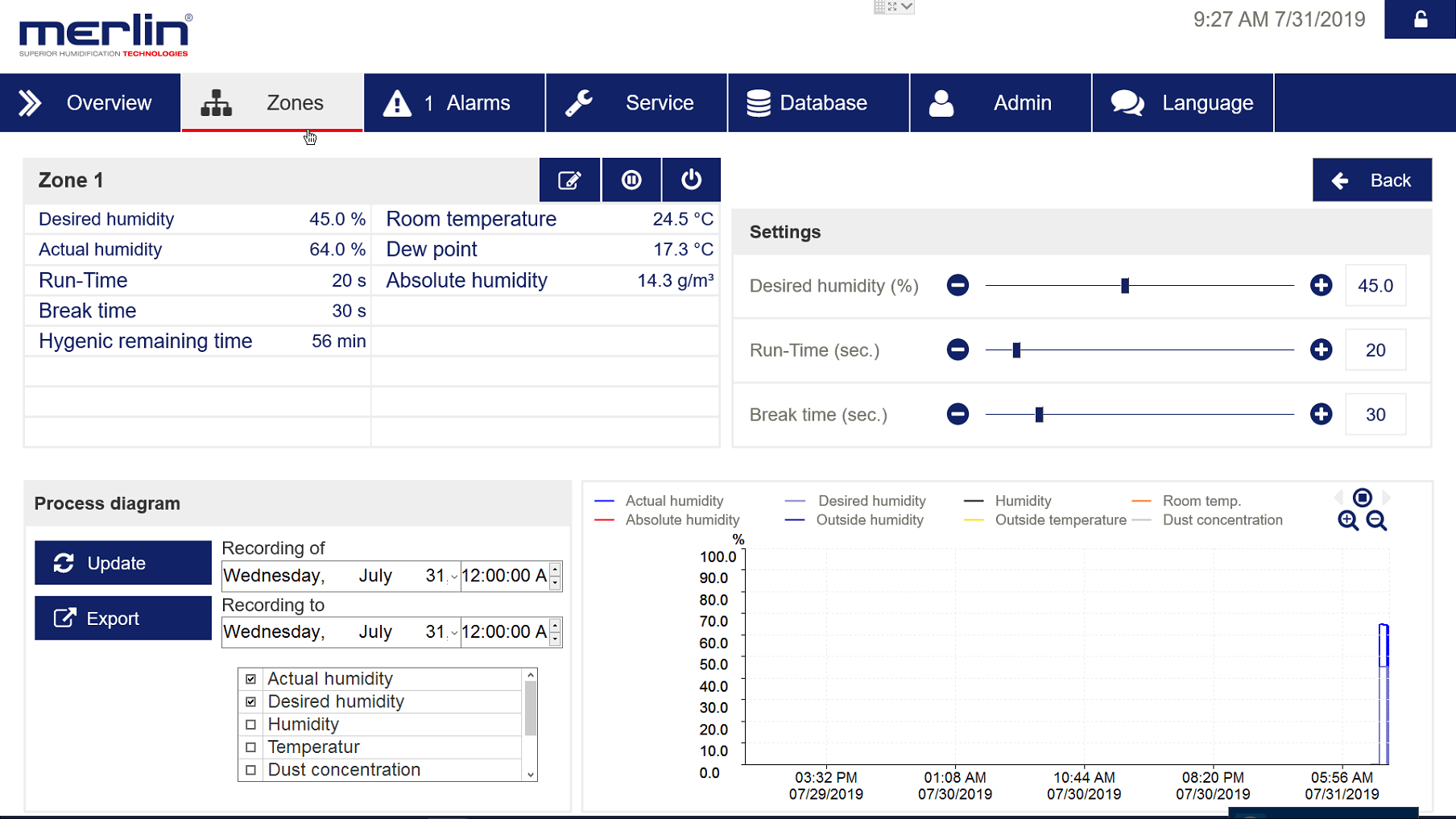

The optional PC visualization gives you an overview of the entire system at all times. It is also possible to record data.
The ALPHA Humidification System is the most versatile available.
It can precisely control up to 12 separate zones individually or even more with an additional slave unit controlled by the same PLC
With the B&R industrial PLC with touch screen and an intuitive user interface, you have all the necessary information and settings at hand.
ALPHA - THE MULTIFUNCTIONAL HIGH-END HUMIDIFICATION SYSTEM
The ALPHA humidification system is the high-end system from Merlin for direct room humidification. With a water lubricated high pressure pump and only the highest quality materials used, the ALPHA requires little to no maintenance and assures you a reliable operation.
Then the water is pumped through a stainless steel hydraulic pump at a pressure of 70 bar to the humidification units where it is finally atomized with the MICRO DROP high-performance nozzles.
The flexible PLC multi-zone control with touchscreen in combination with high-quality humidity sensors ensures precise and constant ambient humidity.
The optional PC visualization gives you an overview of the entire system at all times. It is also possible to record data.
The ALPHA Humidification System is the most versatile available.
It can precisely control up to 12 separate zones individually or even more with an additional slave unit controlled by the same PLC
With the B&R industrial PLC with touch screen and an intuitive user interface, you have all the necessary information and settings at hand.
Your Benefits:
Water lubricated stainless steel pump (oil and maintenance free)
VFD motor for constant pressure and spray quality
Up to 12 zones/areas individually and precisely controllable with one system (more possible)
PLC with 10” touch screen and intuitive user interface
All water-bearing parts of stainless steel and food grade plastics
Low maintenance and minimal operating costs (up to 95% less compared to steam)
Modular and functional design, easy to extend
High level of reliability and safety (monitoring sensors)
Hygienic cycle in stand-by operation
Ethernet connection and integration into building control systems possible
Your Benefits:
Water lubricated stainless steel pump
(oil and maintenance free)
VFD motor for constant pressure
and spray quality
Up to 12 zones/areas individually and precisely controllable with one system
(more possible)
PLC with 10” touch screen and
intuitive user interface
All water-bearing parts of stainless
steel and food grade plastics
Low maintenance and minimal operating costs (up to 95% less compared to steam)
Modular and functional design,
easy to extend
High level of reliability and safety (monitoring sensors)
Hygienic cycle in stand-by operation
Ethernet connection and integration into building control systems possible
