PIN-LESS WOOD MOISTURE METERS

The perfect device for your application. Covers almost all known species of wood.

Wide density range, 10.93 - 67.11 lbs/ft³ (175 – 1075 kg/m³)

BENEFITS & FEATURES

FIND YOUR DEVICE

MORE INFORMATION

Shop online here

Lightning-fast measurement without leaving a single mark on your stock while you get your readings!

New Button

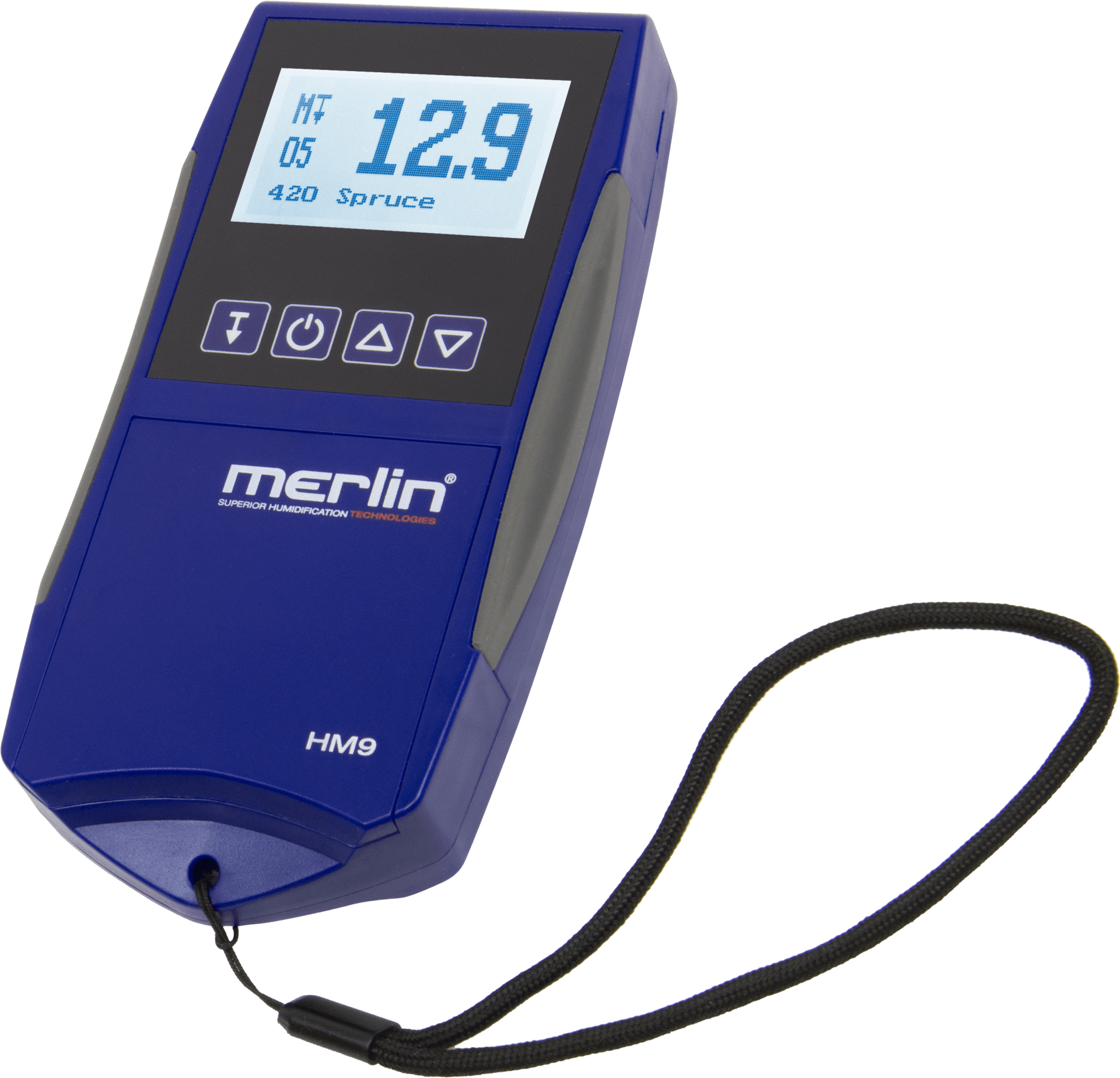

Application	Model	Min. wood thickness	Measuring depth	Special features
Veneer	HM9 WS1	0.02" / 0.5 mm	0.02 – 0.12" / 0.5 – 3 mm	Preselection of wood thickness between 6 different measuring depths (0.5, 0.75, 1.0, 1.25, 2.0, 3.0 mm) for an even more accurate measurement of veneer. UNIQUE WORLDWIDE!
Flooring	HM9 WS5, EVO FC¹	0.20" / 5 mm	0.31" / 8 mm	¹ Humidity measurements possible with the EVO FC in combination with optionally available external sensors
Furniture	HM9 WS13, EVO WW²	0.51" / 13 mm	0.79" / 20 mm	² Save measured value, hold function; Display of temperature in °C / °F
Sawmill	HM9 WS25, EVO SM²	0.98" / 25 mm	1.57" / 40 mm	² Save measured value, hold function; Display of temperature in °C / °F

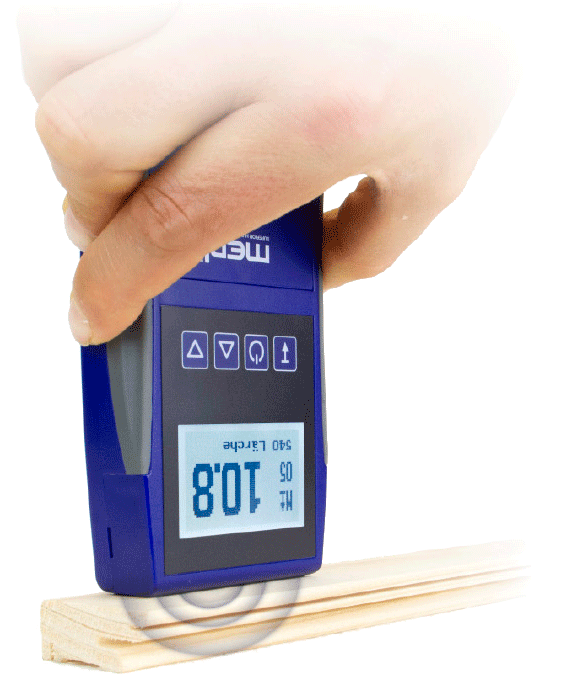

Flooring & Sawmill	HM9 DUO	Frontside 0.20" / 5 mm Backside 0.98" / 25 mm	Frontside 0.31" / 8 mm Backside 1.57" / 40 mm	Combined device of HM9 WS5 and HM9 WS25: 2 sensors in one device. Front sensor plate smallsized for narrow surfaces UNIQUE WORLDWIDE!

The advantage of using pin-less moisture meters of Merlin

With our precise sensor technology you save time and money.

Many wooden pieces can be scanned quickly without damaging or leaving pinholes.

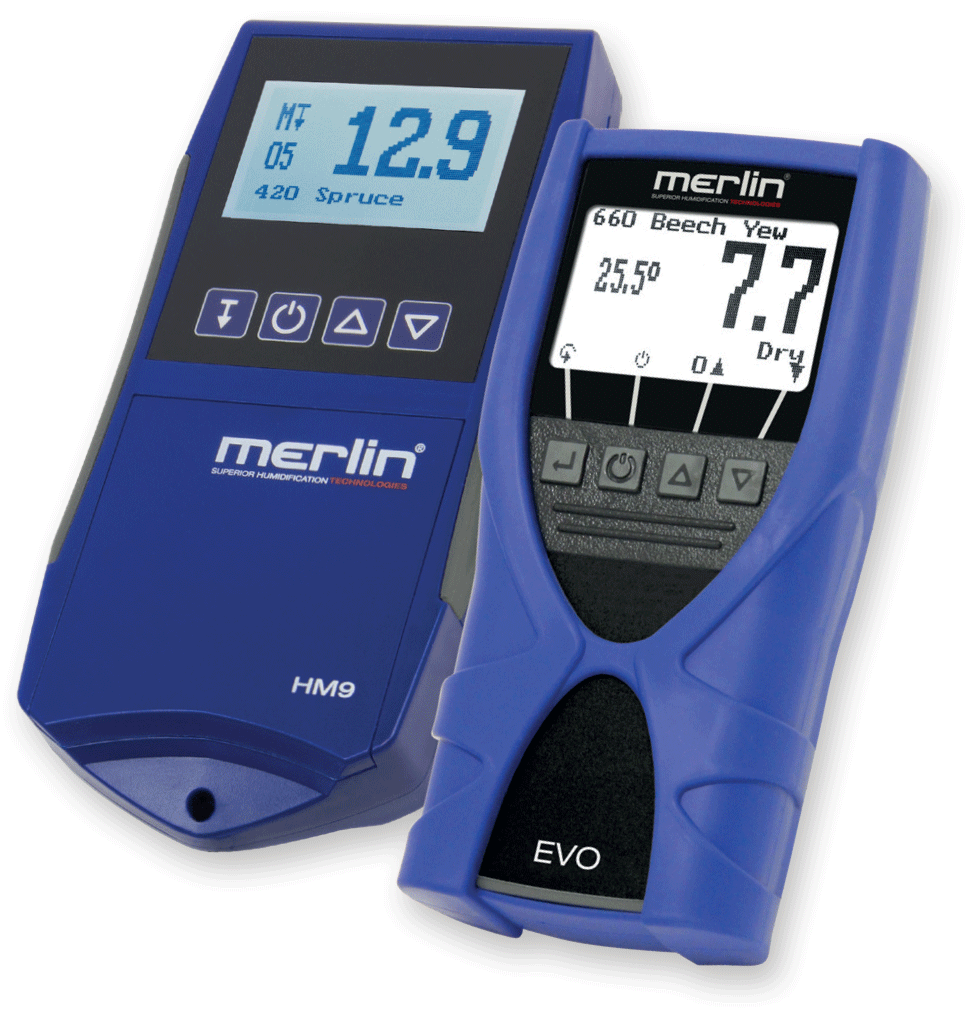

Benefits & Features

of the HM9 & EVO series

Pinless measurements within seconds

Wide density range (175 kg/m³ – 1075 kg/m³) with 21 wood groups / characteristics

For a large part of all wood species worldwide

Exact measurements starting

from already 2 % wood moisture

Fast selection of characteristics

Robust housing

Display of wood moisture, dry density, wood group and minimum wood thickness

Display lighting

Calibration function

Menu with language selection

Integrated compensation for rough-cut wood at our devices with 20 mm / 40 mm measuring depth

Fast and highly accurate readings

Wide density range 10.93 - 67.11 lbs/ft³ (175 – 1,075 kg/m³) with 21 preprogrammed wood species

For a large part of all wood species worldwide

Exact measurements starting at 2 % wood moisture

Fast selection of characteristics

Sturdy housing

Display of wood moisture, dry density, wood group and minimum wood thickness

Display lighting

On-site calibration function

Menu with language selection

Non-damaging pinless sensor

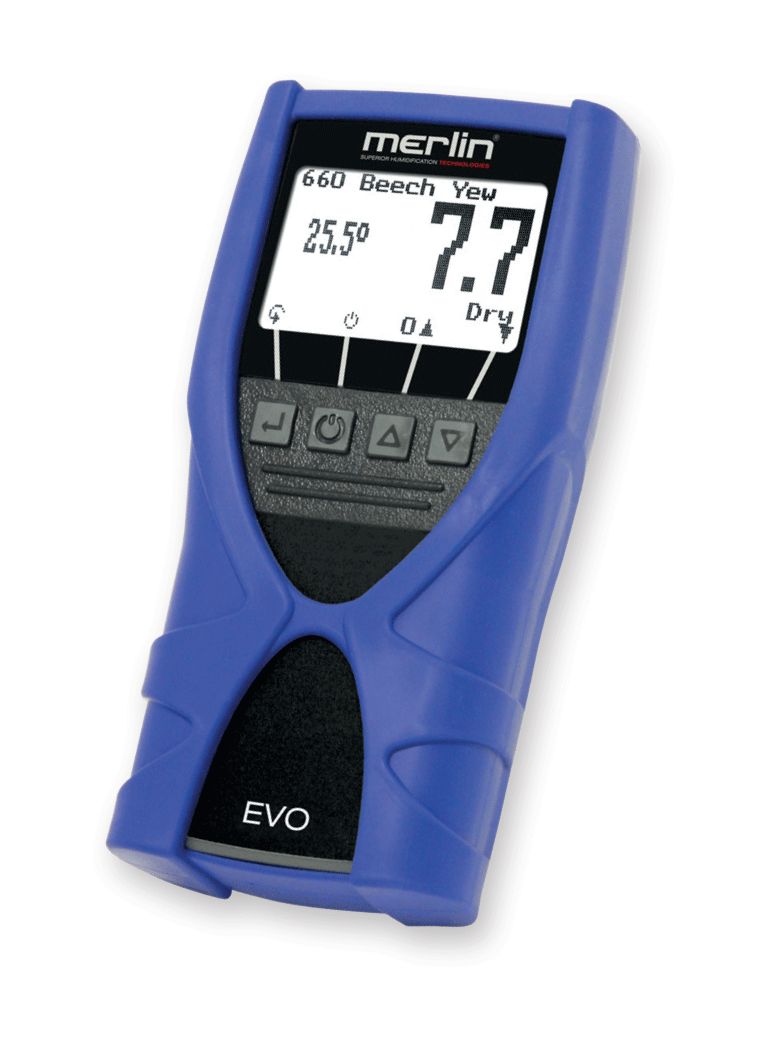

Additional Benefits & Features

of the EVO series

Display of temperature

HOLD function of the measured value

Very helpful for overhead measurements or for measurements without direct view at the display

Innovative evaluation of wood moisture, which shows at the display what the measured value means (dry | optimal | moist | wet)

According to experiences at

the specific application

Display of temperature in °C or °F

Save measured value and hold function

Very helpful for overhead measurements or for measurements without direct view at the display

Fast evaluation of the wood moisture content (dry | optimal | moist | wet)

According to experiences at the specific application

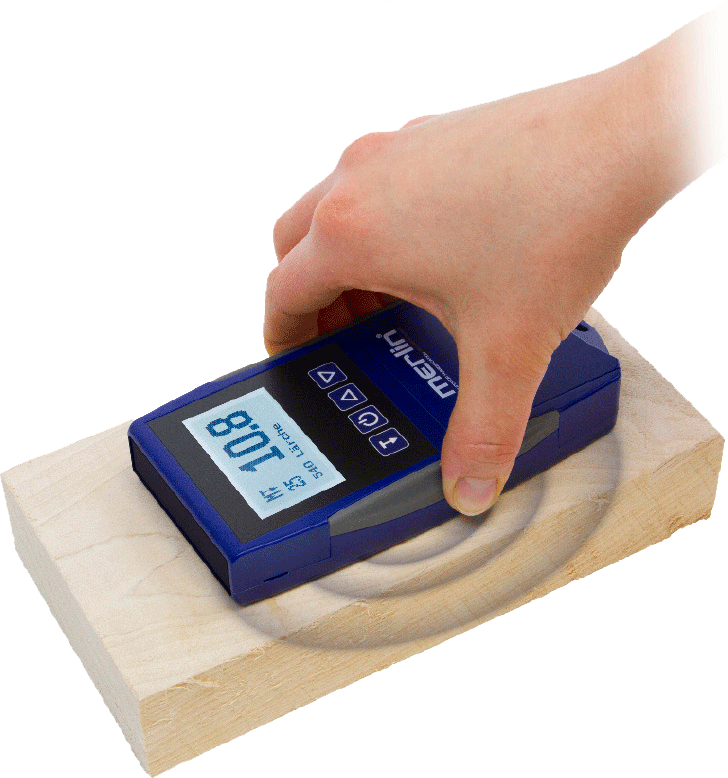

How does non-destructive measurement work?

The measuring principle:

To determine the material moisture or the water content of your material, press the moisture meter flat on your product. Within seconds, the moisture meter will show you the water content of the material in the range of the measurable material depth. The moisture analyzer already contains many different product groups and displays the result as a percentage of the moisture content in the wood.

Button
Button

Application	Article	Min. wood thickness	Measuring depth	Feature
Veneer	HM9 WS1	0.5 mm	-	Preselection of wood thickness: select between 6 different measuring depths (0.5 – 3 mm) for an even more accurate measurement for low wood thickness UNIQUE WORLDWIDE!
Flooring	HM9 WS5 EVO FC	175-1,075 kg/m3 (10.92 - 67.11 lbs/ft3)	8 mm	Air humidity measurements possible with the EVO FC in combination with optionally available external sensors
Furniture	HM9 WS13 EVO WW	13 mm	20 mm
Sawmill	HM9 WS25 EVO SM	25 mm	13 mm
Flooring + Sawmill	HM9 DUO	Front 5 mm Underside 25 mm	Front 8 mm Underside 40 mm	Combined device from HM9 WS5 and HM9 WS25: 2 sensors in one device! UNIQUE WORLDWIDE! Front sensor plate small-sized for smallest surfaces!

How to prevent moisture problems:

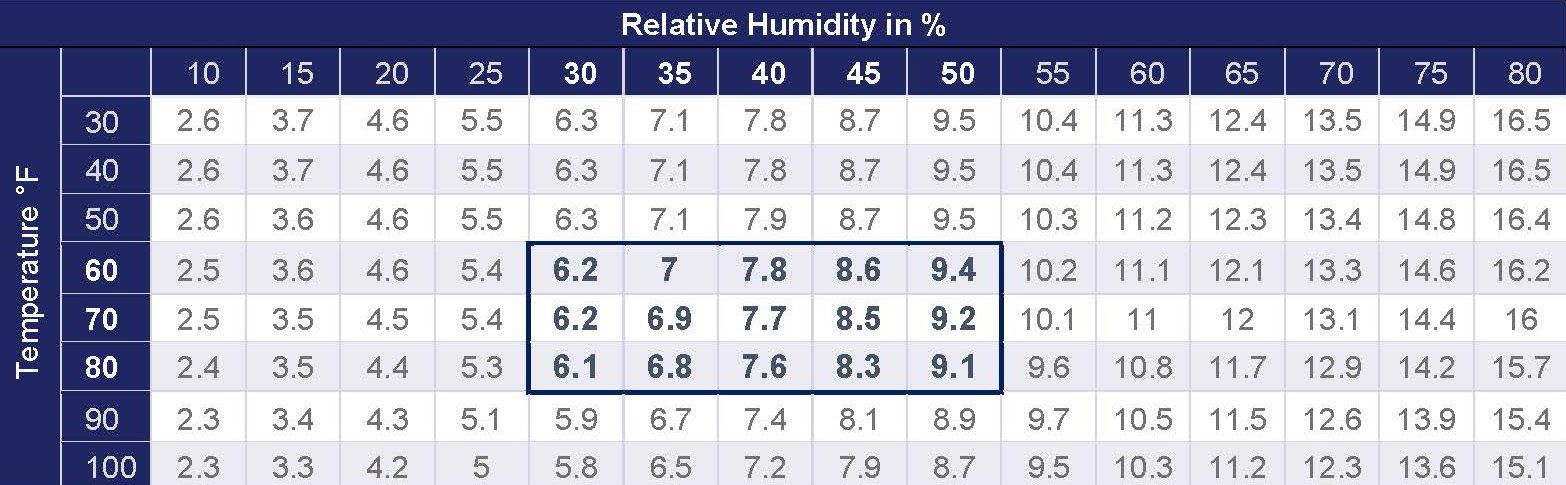

Relative Humidity, Temperature and EMC

Compare wood moisture, relative humidity and ambient temperature with the EMC Chart to find out if wood will absorb moisture, keep its moisture content or loose moisture and shrink or warp.

Ambient conditions inside buildings are recommended to be at 30-50% relative humidity and 60°F to 80°F. If you stay within these recommendations, the amount of expansion and contraction of wood floors at 6-9% moisture is limited.

(Source: the US Dept. of Agriculture “Wood Handbook, Wood as an Engineering Material”)
